Name: AC Infinity RAXIAL S4, Inline Booster Duct Fan with Speed Controller, 4-Inch
SKU: 493642

Description

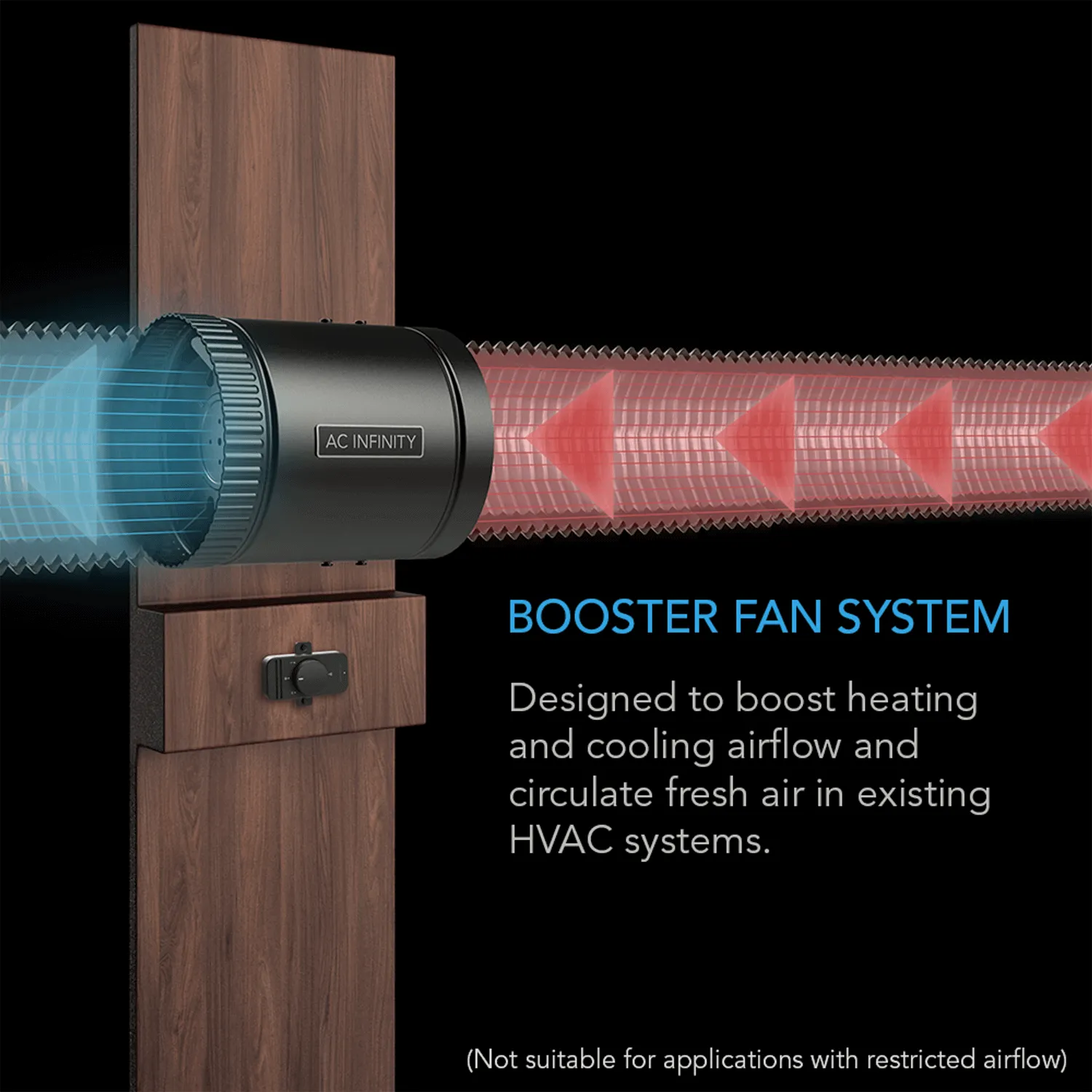

Duct Fan Design: Engineered with the intention of enhancing airflow in HVAC systems and ventilating spaces within homes, such as attics and workshops.

Variable Speed Controller: A valuable feature that lets you customize the airflow and noise level to accommodate various applications. This feature allows the fan speed to be fine-tuned to fulfill specific airflow boosting expectations.

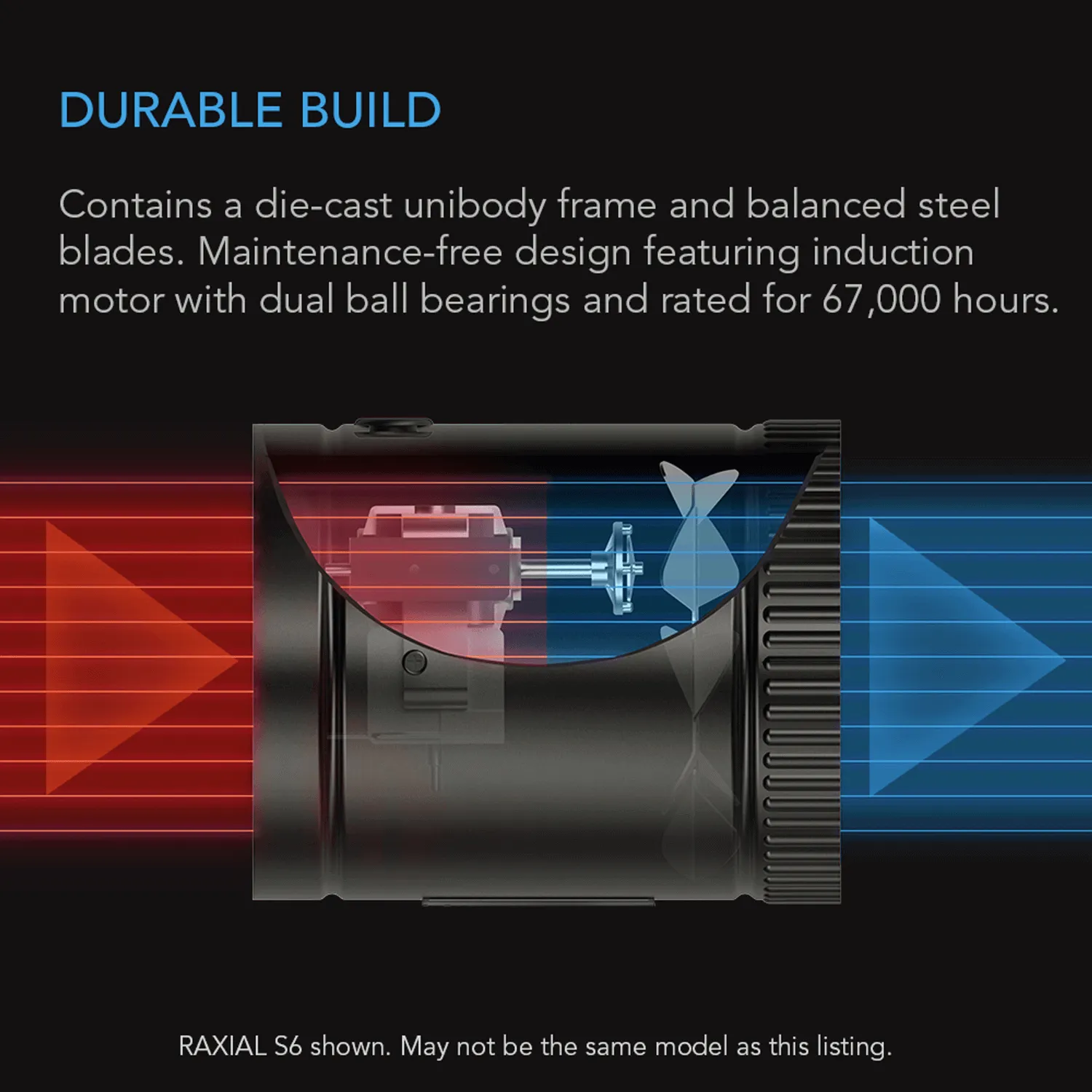

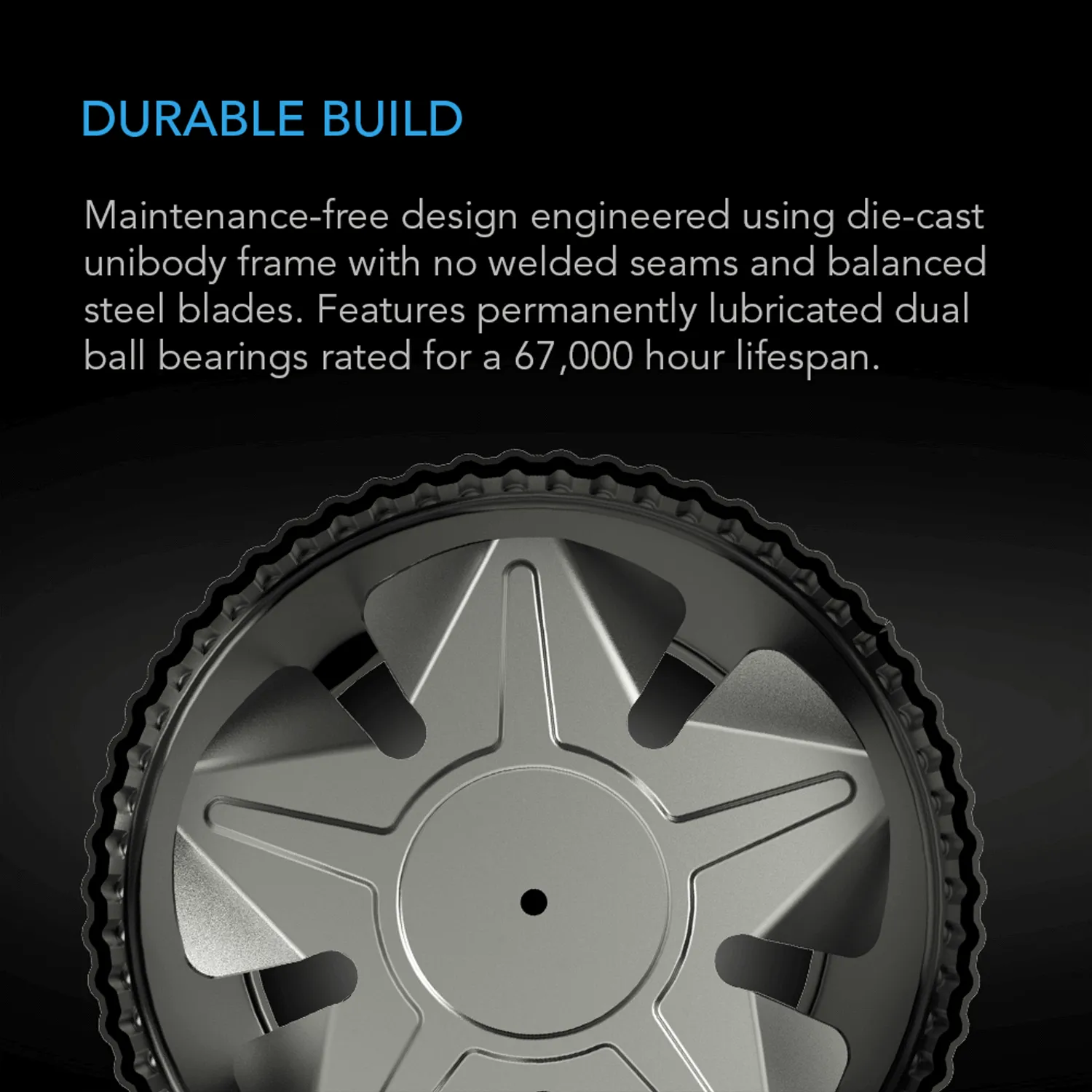

Unibody Die-Cast Construction: This construction style prevents welded seams thereby decreasing vibration and ensuring a smoother flow of air. The fan includes an AC brushless motor with steel blades and lubricated bearings. It's important to note that it is not recommended for operations with restricted airflow.

Product Specifications: The duct size is 4 inches with dimensions of 7.28 x 3.95 x 3.95 inches. It boasts an airflow of 106 CFM and creates a noise level of 28 dBA. The fan uses Dual Ball bearings.

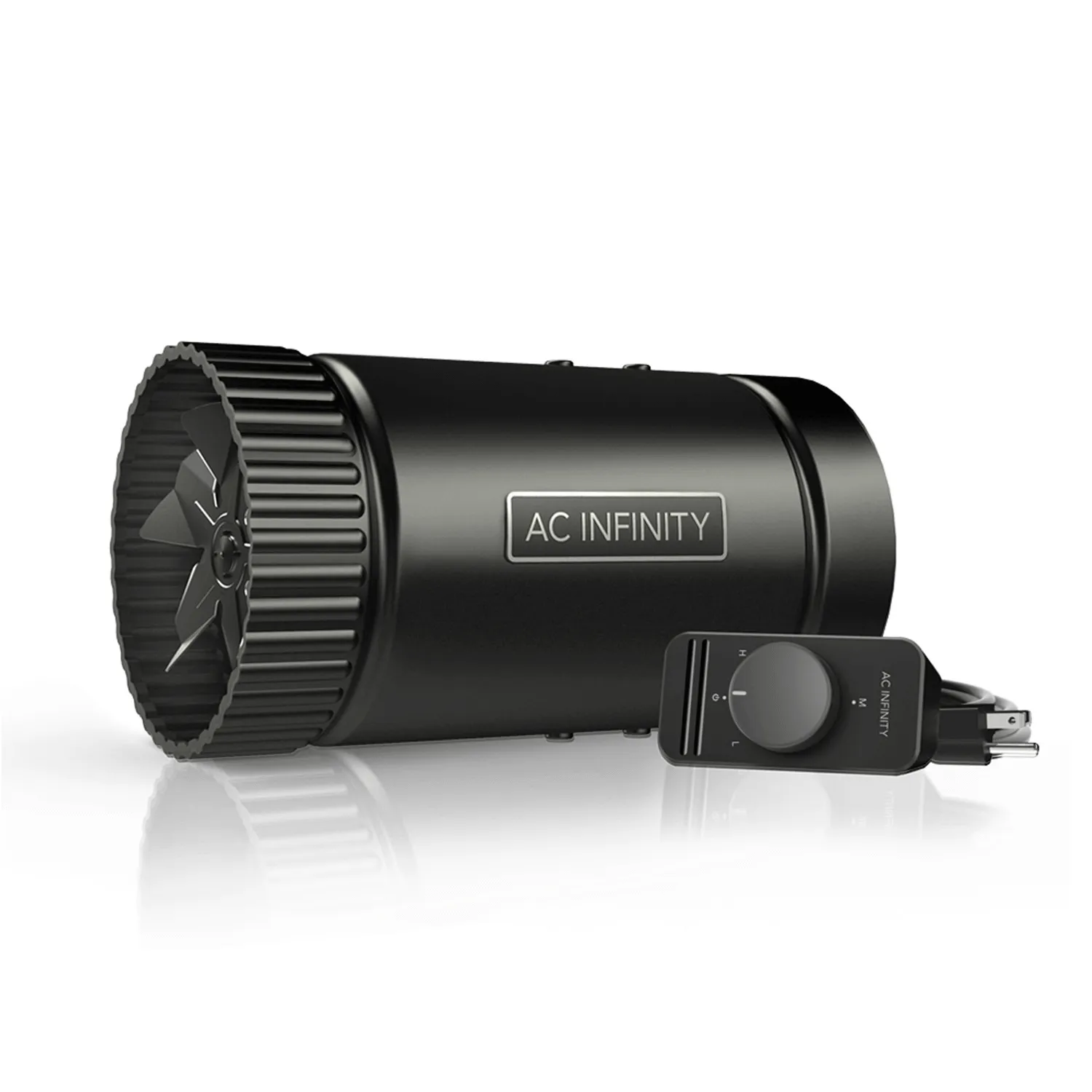

Product Details: It is an inline fan designed for duct boosting and increases airflow in heating and air conditioning systems. The fan operates on an easy-to-use knob controller that adjusts fan speed to user desires. Its steel blades have a lifespan of up to 67,000 hours and operate using permanently lubricated dual-ball bearings. It can be mounted horizontally or vertically. The kit includes an AC powered inline booster duct fan, a speed controller with a power plug, mounting screws, and a cable management set.

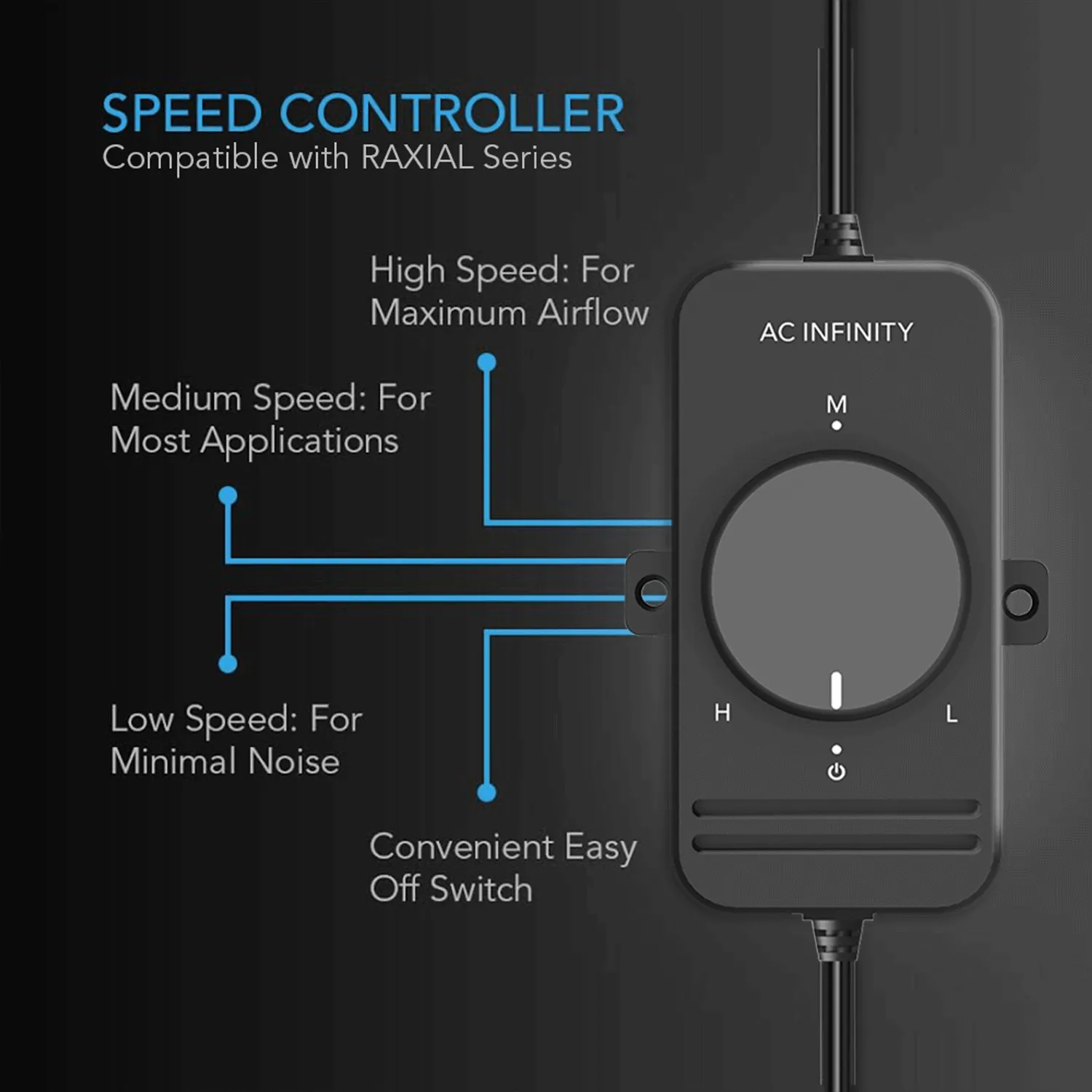

Speed Controller Inclusions: Despite being able to control the fan's speed and power state, by turning the knob the fan speed can be increased or decreased which modifies airflow and noise levels. The speed controller uses a female aviation plug with a metal retainer to tightly secure its connection to the booster duct fan.

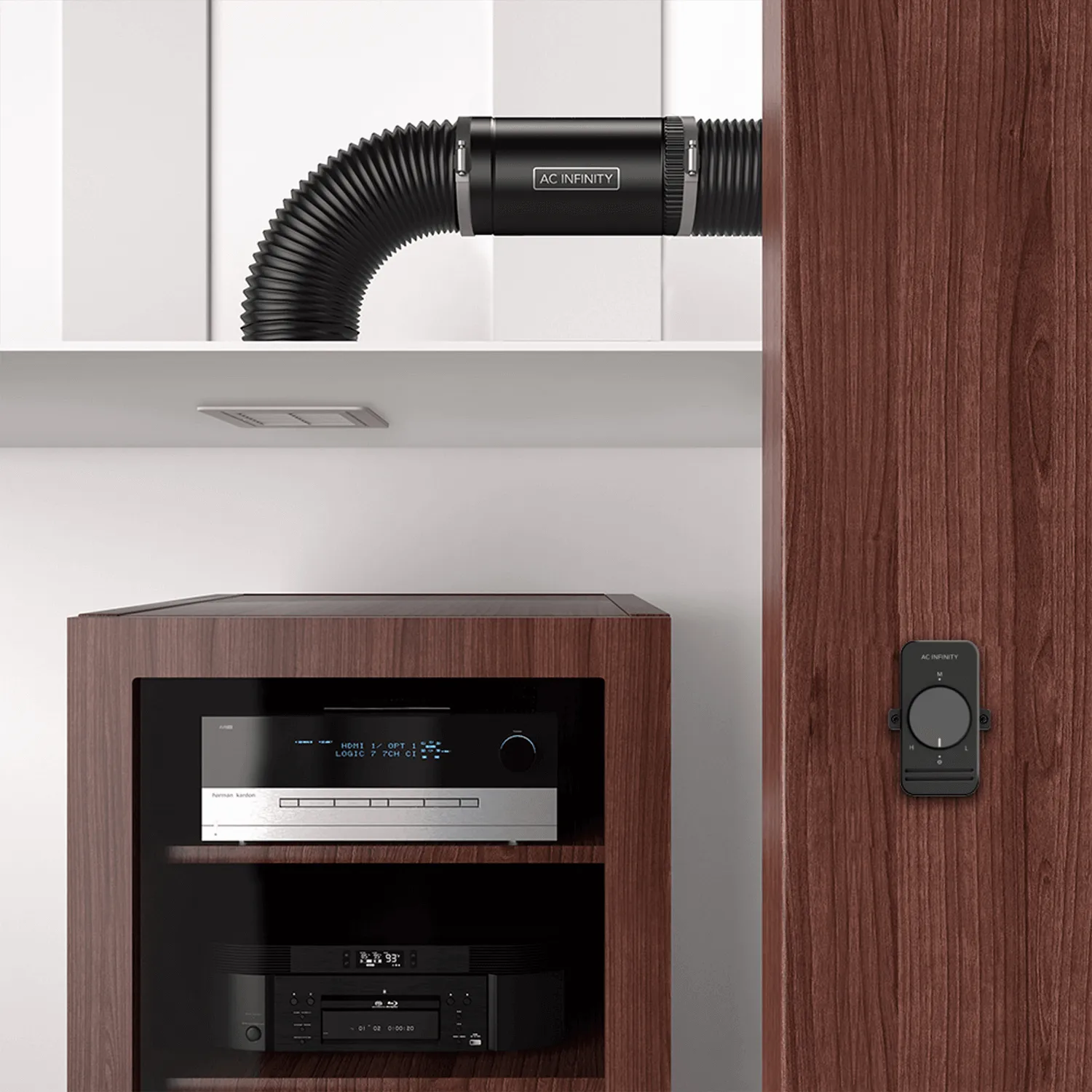

Versatile Applications: This inline booster fan is robust enough to fit into various applications needing enhanced air delivery. For enhancing airflow from HVAC units and removing stale air and odor, it can be used in a diverse range of household spaces from attics, workshops, kitchens, to basements. Although it is primarily used as an intake fan in indoor gardens, grow rooms, and grow tents, it must be noted that this booster fan cannot be used standalone in high static pressure operations like room ventilation. It is also not intended for use in systems with restricted airflow such as those with carbon filters.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: RAXIAL S4

Product Model: AC-RXS4

UPC Code: 819137021105

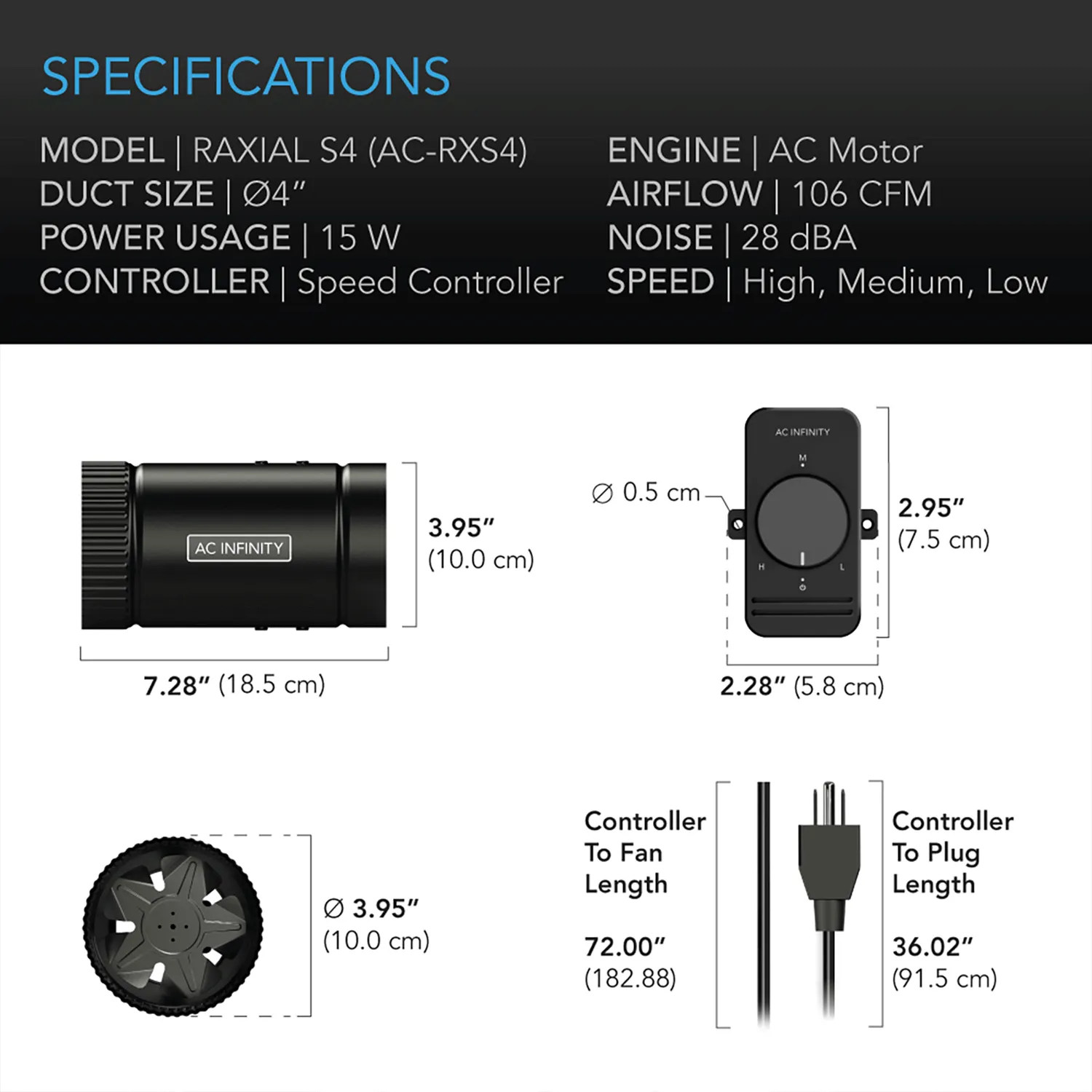

Product and Mounting Dimensions - Fan Unit

Duct Size: 4 inches

Total Dimensions: 7.28 x 3.95 x 3.95 inches

Cord Length to Controller: 6 feet

Cord Length to Plug: 3 feet

Product and Mounting Dimensions - Controller

Total Dimensions: 2.95 x 1.49 x 1.18 inches

Required Mounting Area: 1.49 x 1.18 inches

Hole to Hole Distance: 1.88 inches

Screw Hole Size: Æ 0.197 inches

Product Performance and Technical Specs

Maximum Airflow: 106 CFM

Total Noise: 28 dBA

Static Pressure: Measures approximately 0.192 inches of water

Operating Voltage: 110V-120V AC

Power: 15 W

Current: 0.15 A

Operating Humidity: 35 to 85% Relative Humidity (RH)

Operating Temperature: 40 to 140°F

Fan Bearings: Dual Ball Bearing

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

CE Certification: Product is CE certified

RoHS Certification: Product is RoHS certified

Data Sheet

Download the Product Manual:

Download the RoHS Certification:
