Name: AC Infinity AXIAL S1225D, Muffin 120V AC Cooling Fan, Dual 120mm x 120mm x 25mm
SKU: 493641

Description

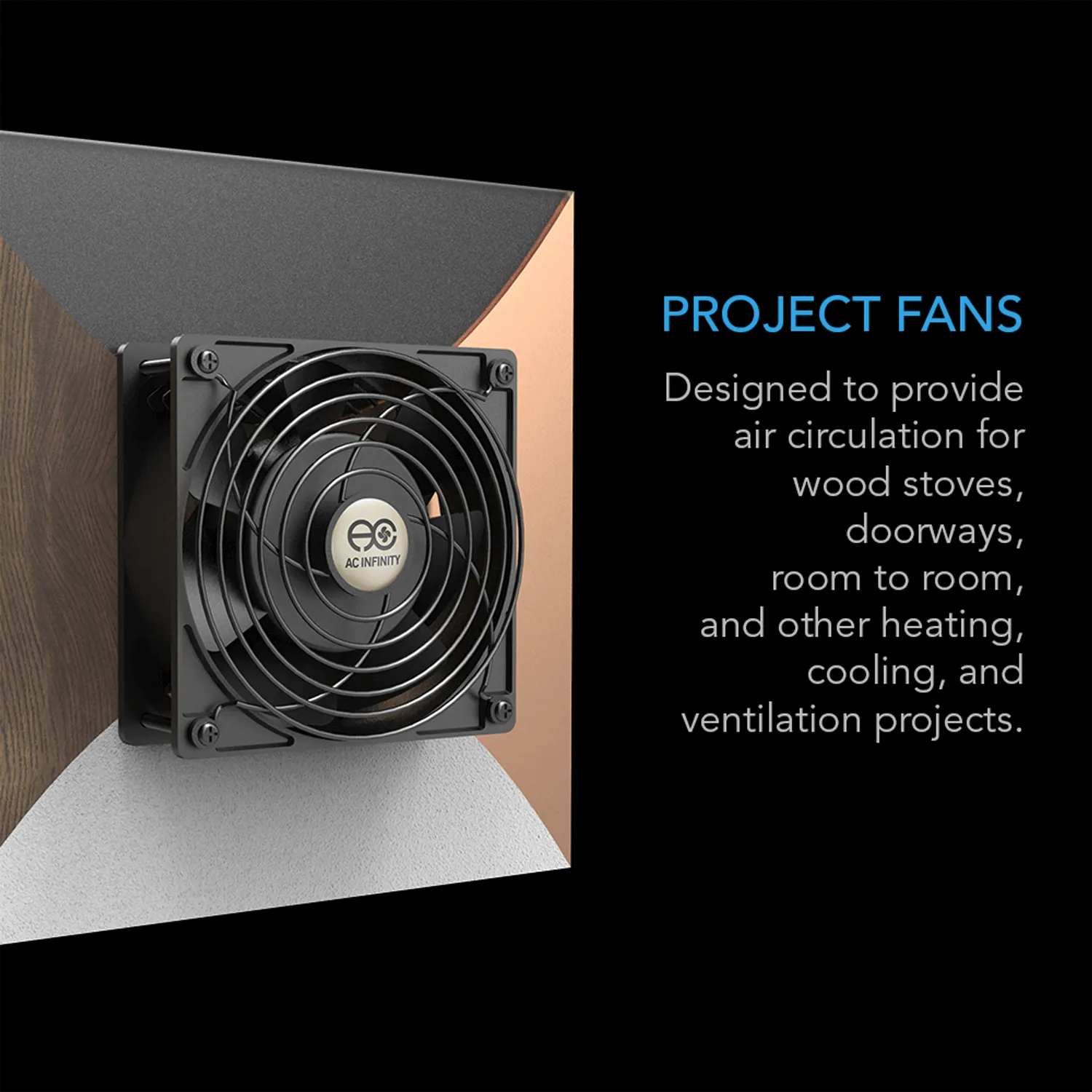

Quiet Fans: The fans are designed for a range of applications including doorways, wood stoves, room-to-room, fireplace, and circulation projects. They feature a speed controller that allows you to optimize both the airflow and noise according to your needs. The fans, which are UL-certified, carry dual-ball bearings and have an extended lifespan of 67,000 hours. For added convenience, they can be mounted in any direction.

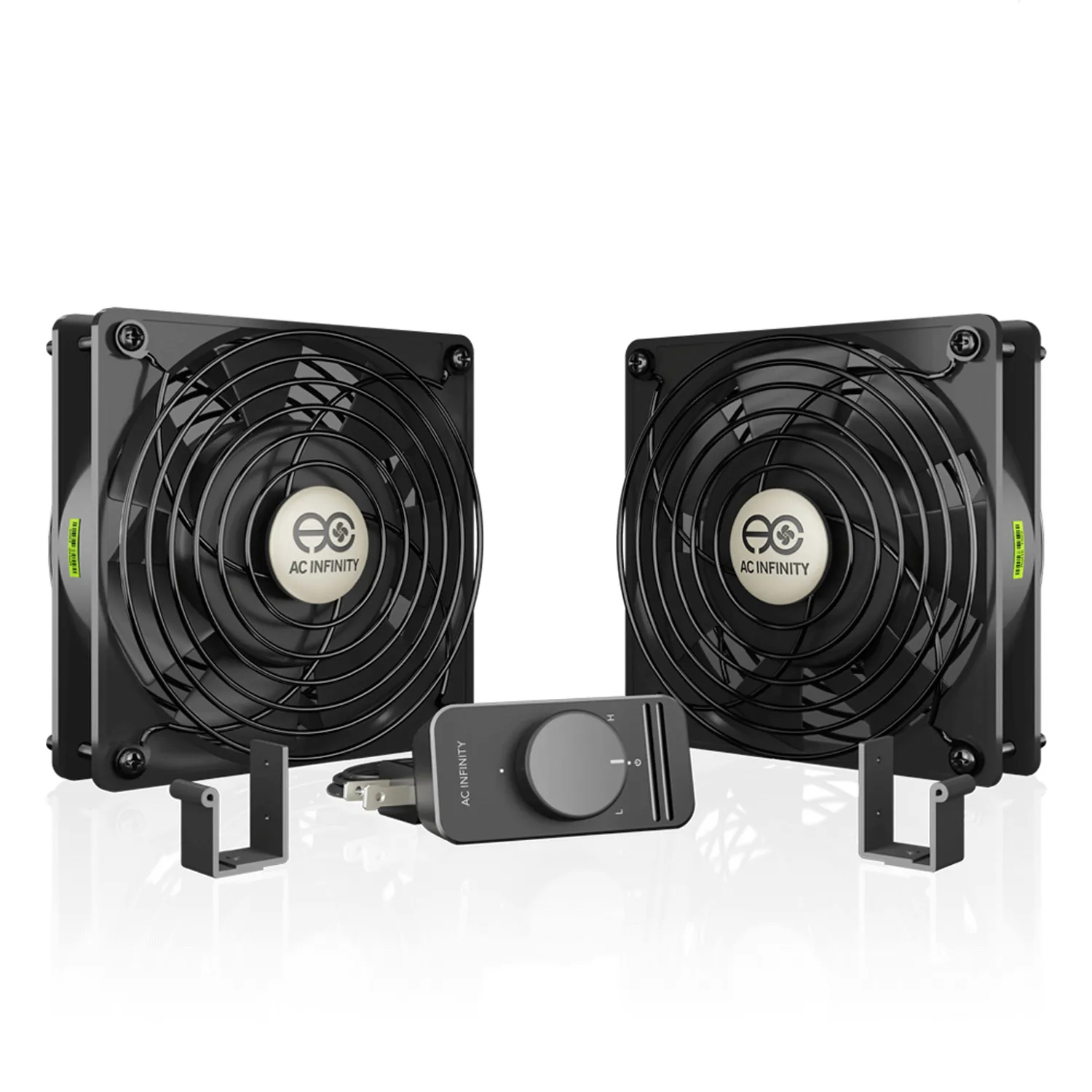

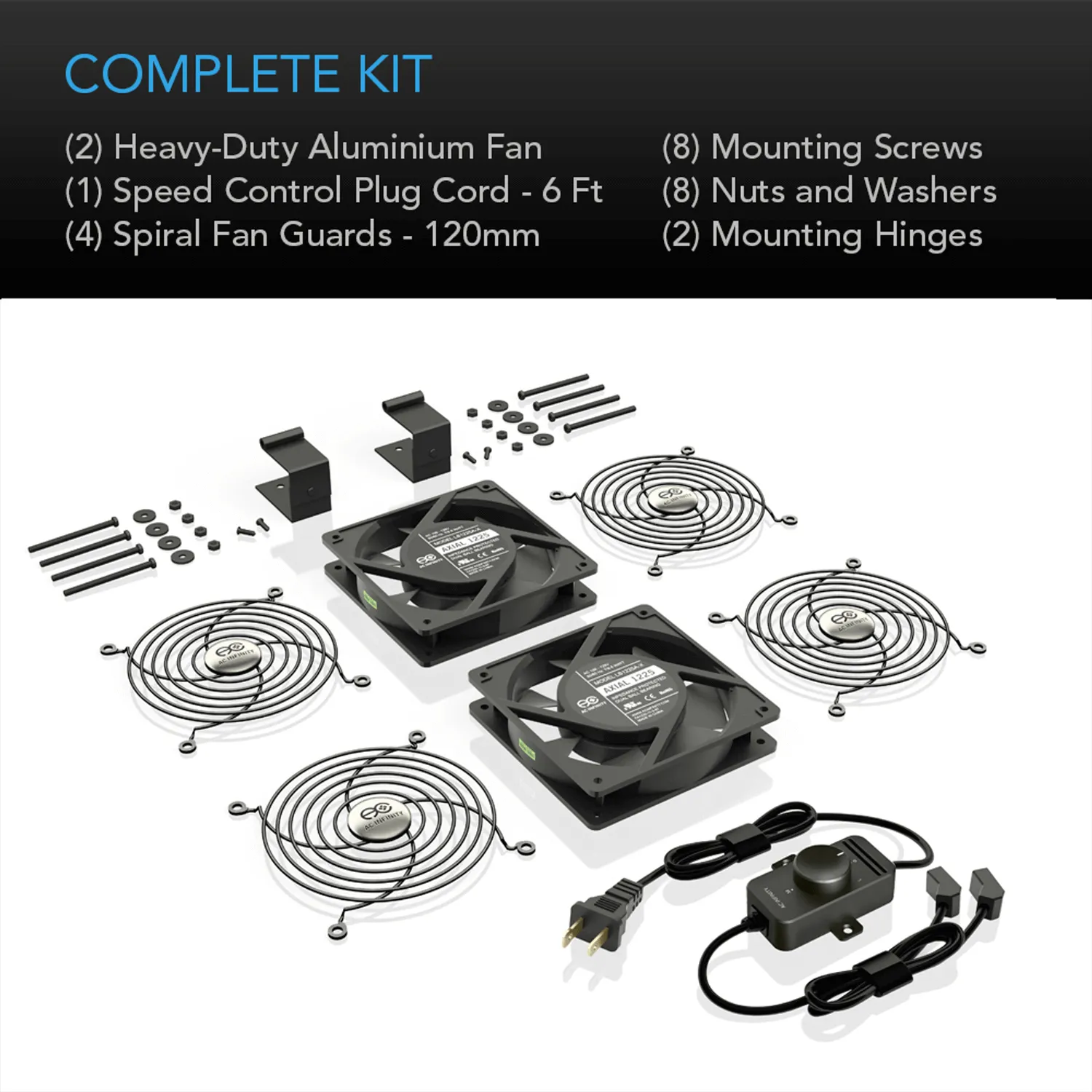

Kit Contents: The set includes heavy-duty aluminum fans, wire guards, mounting screws, swivel brackets, and a power cord. Each fan size is 4.7 x 4.7 x 1 inches with an airflow capacity that ranges from 20 to 69 cubic feet per minute. In addition, the noise level ranges from 16 to 38 dBA.

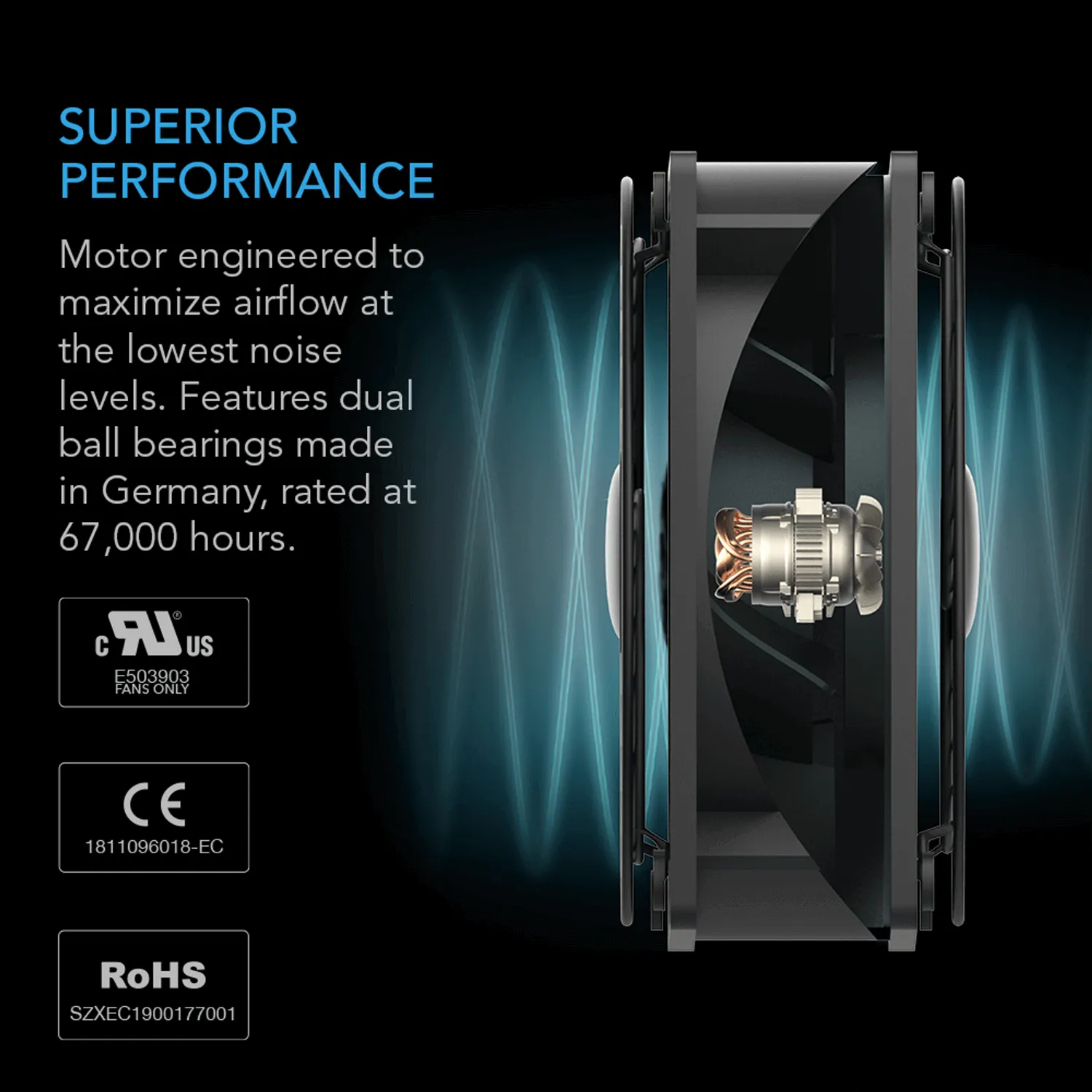

Product Description: This kit enables control of ventilation and air circulation for diverse DIY projects. Featuring an inline controller to set the fan's speed to optimal airflow and noise levels, the kit comes with both swivel brackets and wall-mounting hardware to fit various requirements. The fans, with dual-ball bearings rated at 67,000 hours, can be mounted in any direction. Constructed of heavy-duty aluminum with thermoplastic impeller, the package includes two fans, four grilles, a power plug cord with an inline speed controller, two swivel bracket sets, and eight wall-mounting screws with nuts. The AC Infinity axial fans are recognized by UL under certificate E503903, and are also CE and RoHS certified.

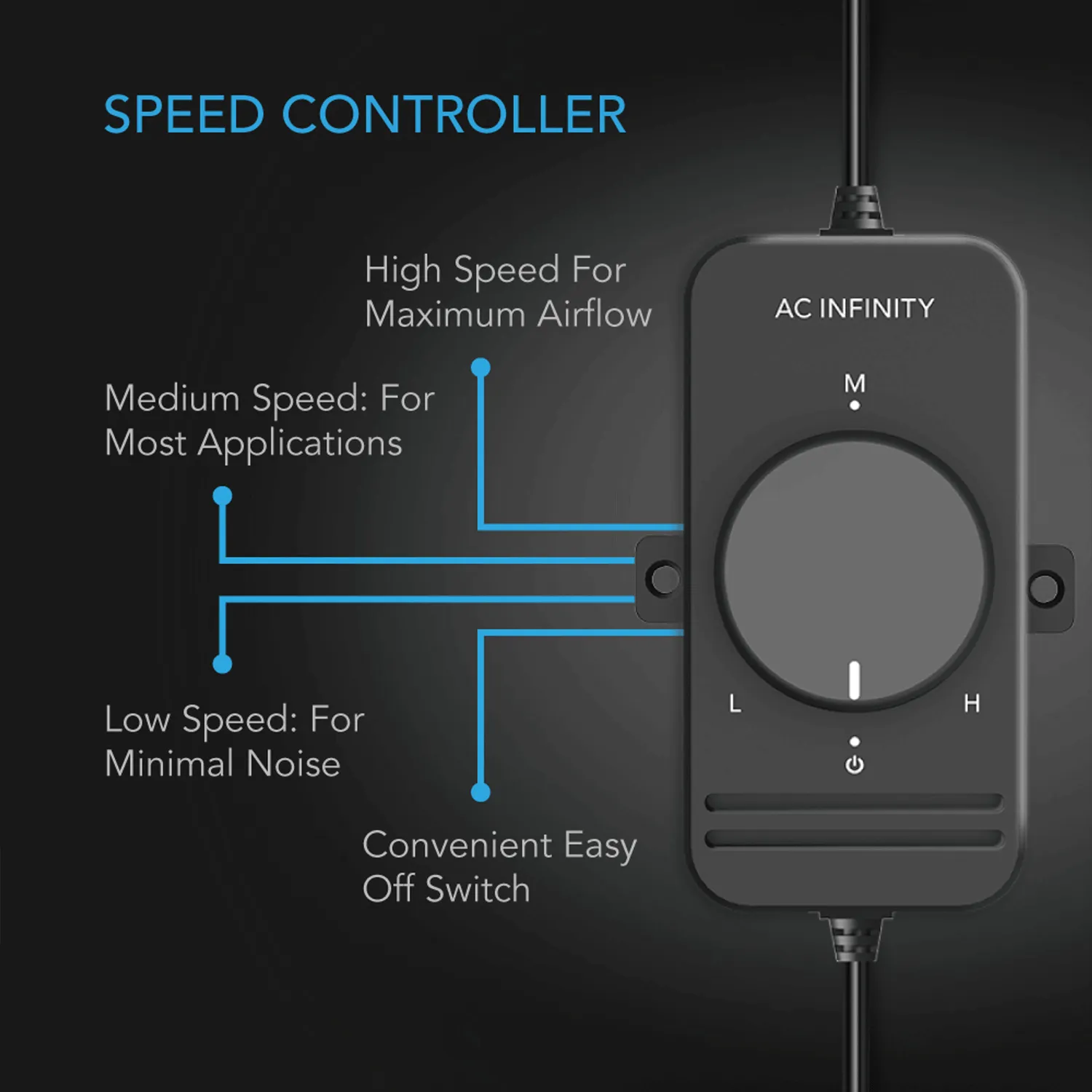

Speed Controller: Each kit features a controller, located on the power cord, that can toggle the fan on and off, as well as control its speed. By merely turning the knob, you can optimize the fan's airflow and noise levels for your application. This makes it easily adaptable to situations that may require added air movement.

Applications: The fan kit finds popular use in wide-ranging cooling, heating, and air circulation applications. It is an ideal companion for various DIY projects involving doorways, room-to-room setups, fireplaces, stoves, and cabinets. The inclusion of both swivel bracket mounting and wall-mounting hardware renders the kit suitable for different applications.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: AXIAL S1225D

Product Model: AI-120SCXD

UPC Code: 854759004150

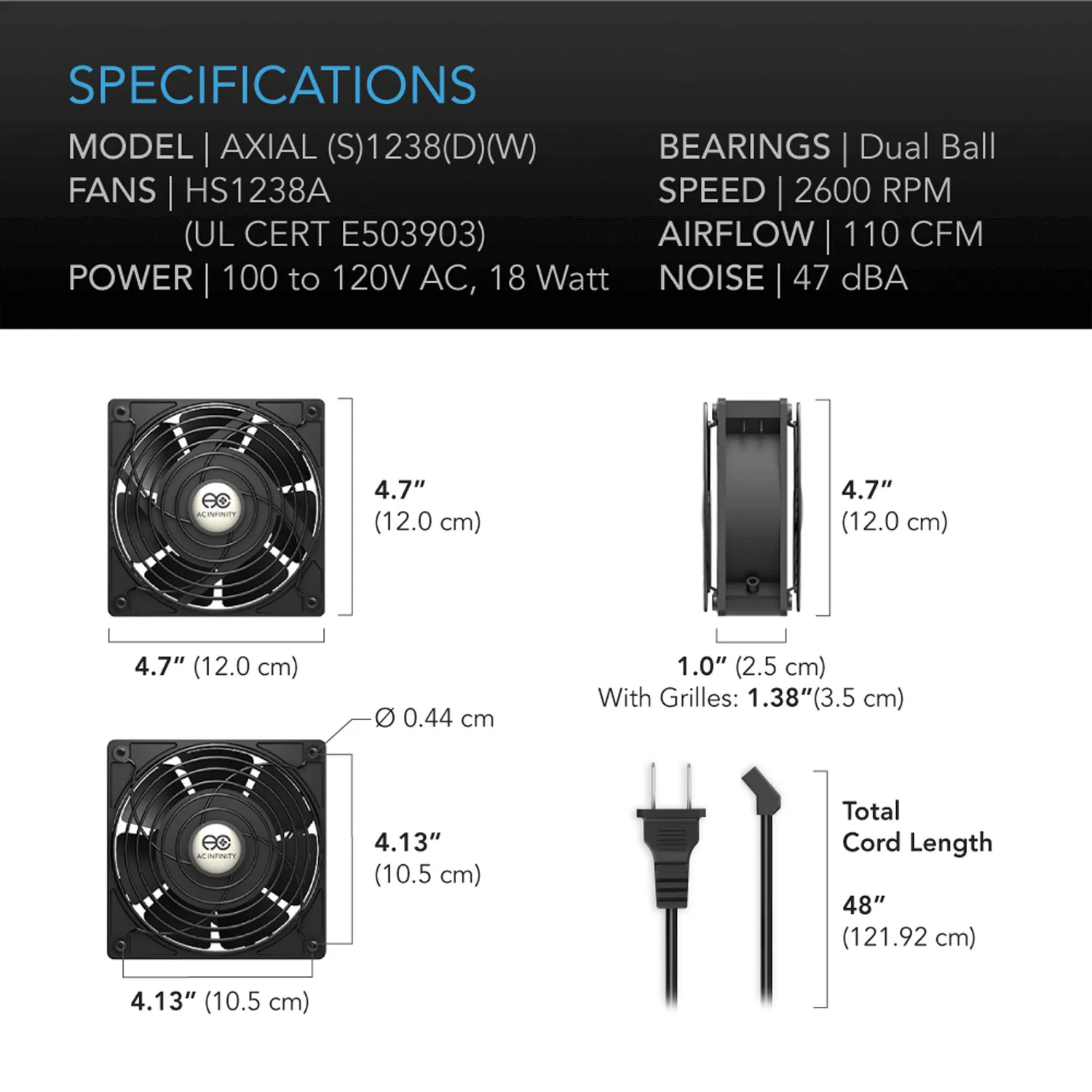

Product Dimensions (per fan)

Total Dimensions: 4.7 x 4.7 x 1 inches

Hole to Hole Distance: 4.13 x 4.13 inches

Screw Hole Size: 0.17 inches in diameter

Cord Length: 72 inches (6 feet) / between fans 48 inches (4 feet)

Product Performance and Technical Specs (per fan)

Fan Model: HS1225A

Number of Fans: 2

Total Airflow: 20 to 69 CFM

Total Noise: 16 to 38 dBA

Speed: 700 to 2450 RPM

Operating Voltage: 100 to 120V AC

Power: 10 W

Current: 0.09 A

Static Pressure: 4.4 mm-H2O

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140 degrees F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:
