Name: AC Infinity AXIAL 8025, Muffin 120V AC Cooling Fan, 80mm x 80mm x 25mm
SKU: 493638

Description

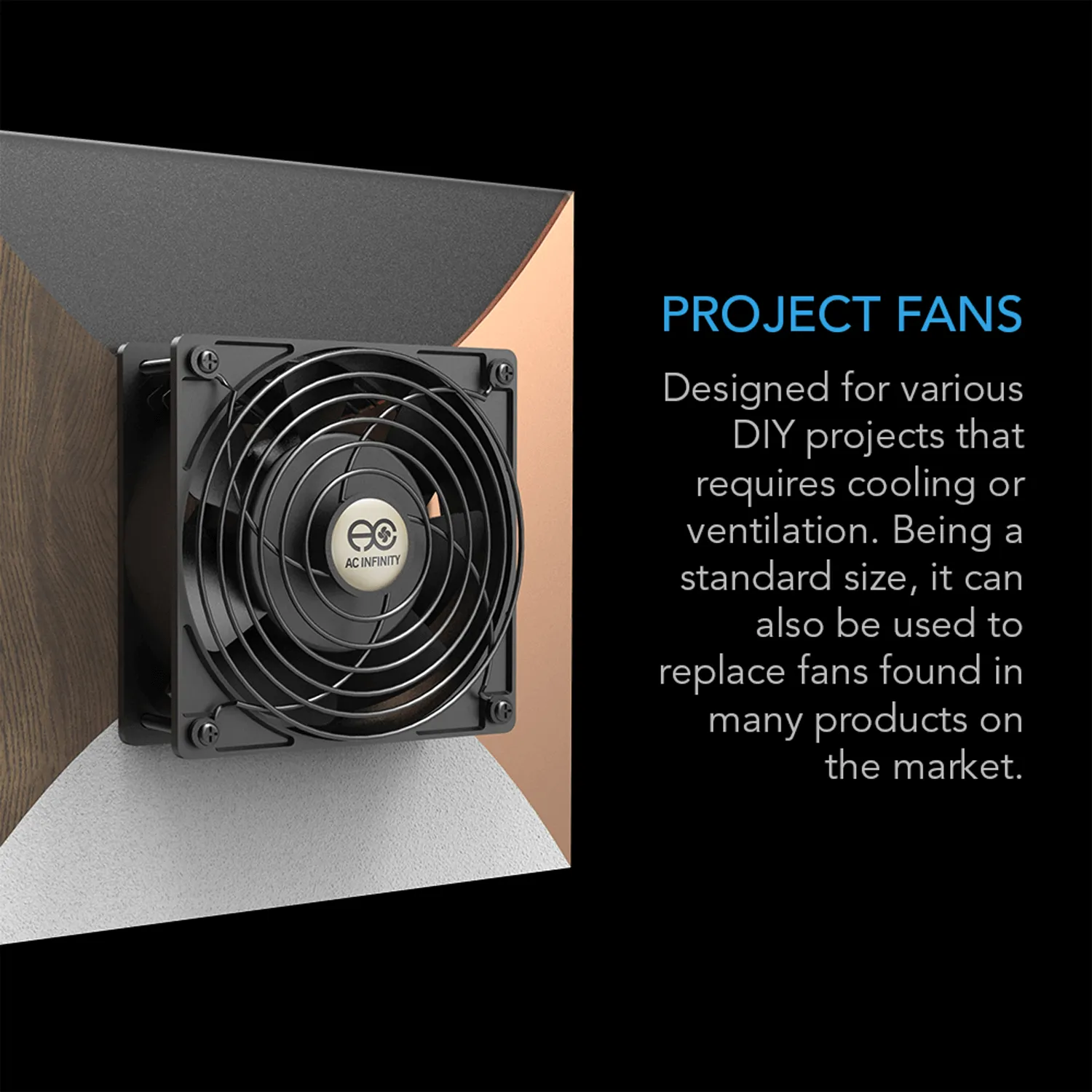

Designed for projects that require cooling or ventilation; or as a replacement fan for various products.

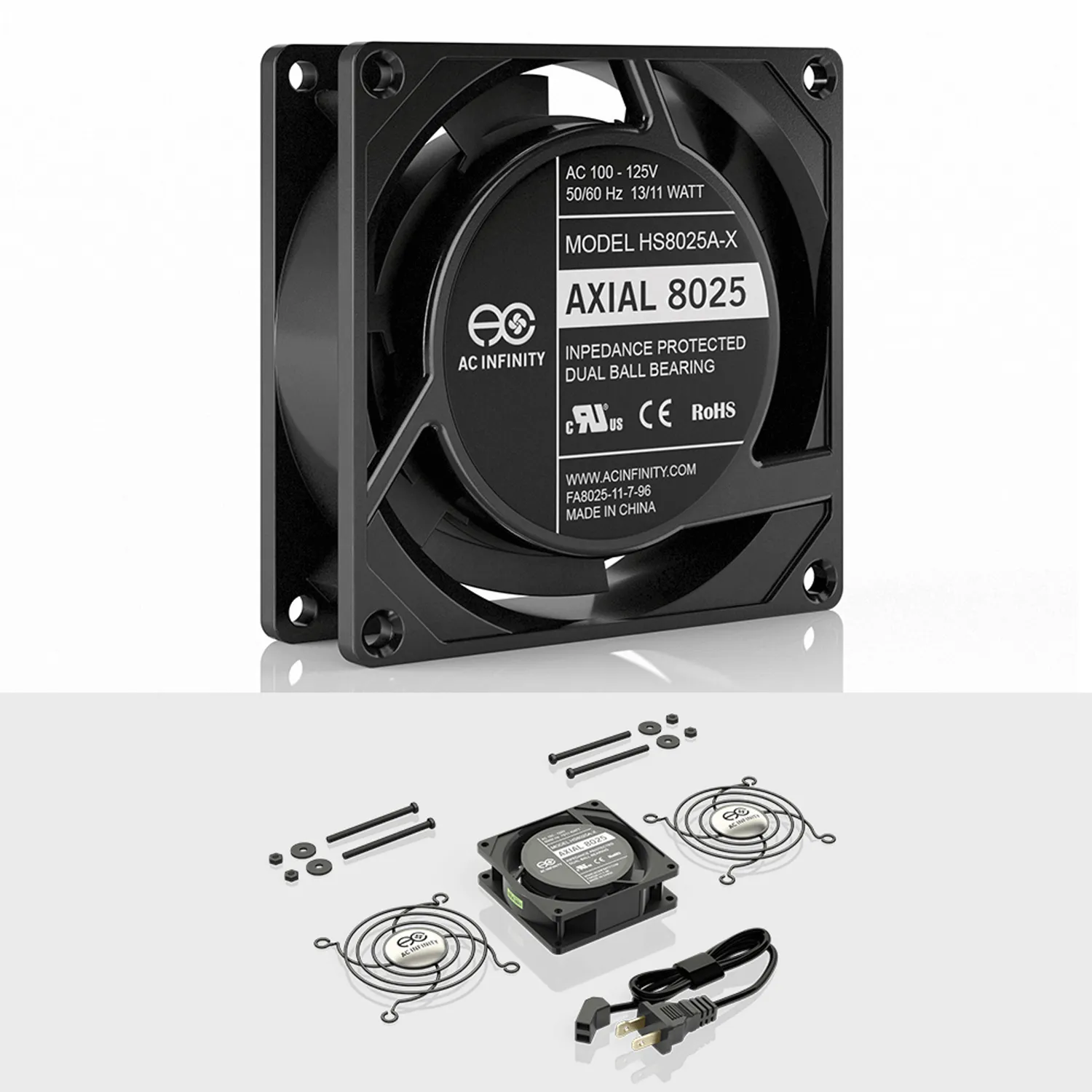

Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and a mounting screw set.

This UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.

High Speed: This model is designed to maximize airflow and may be too loud for some applications.

Dimensions: 80 x 80 x 25 mm (3.2 x 3.2 x 1 in.)

Voltage: 100 to 120V AC

Airflow: 22 CFM

Noise: 32 dBA

Speed: 3200 RPM

The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. It runs on 100 to 120V AC and includes everything needed for easy installation and power from a wall outlet.

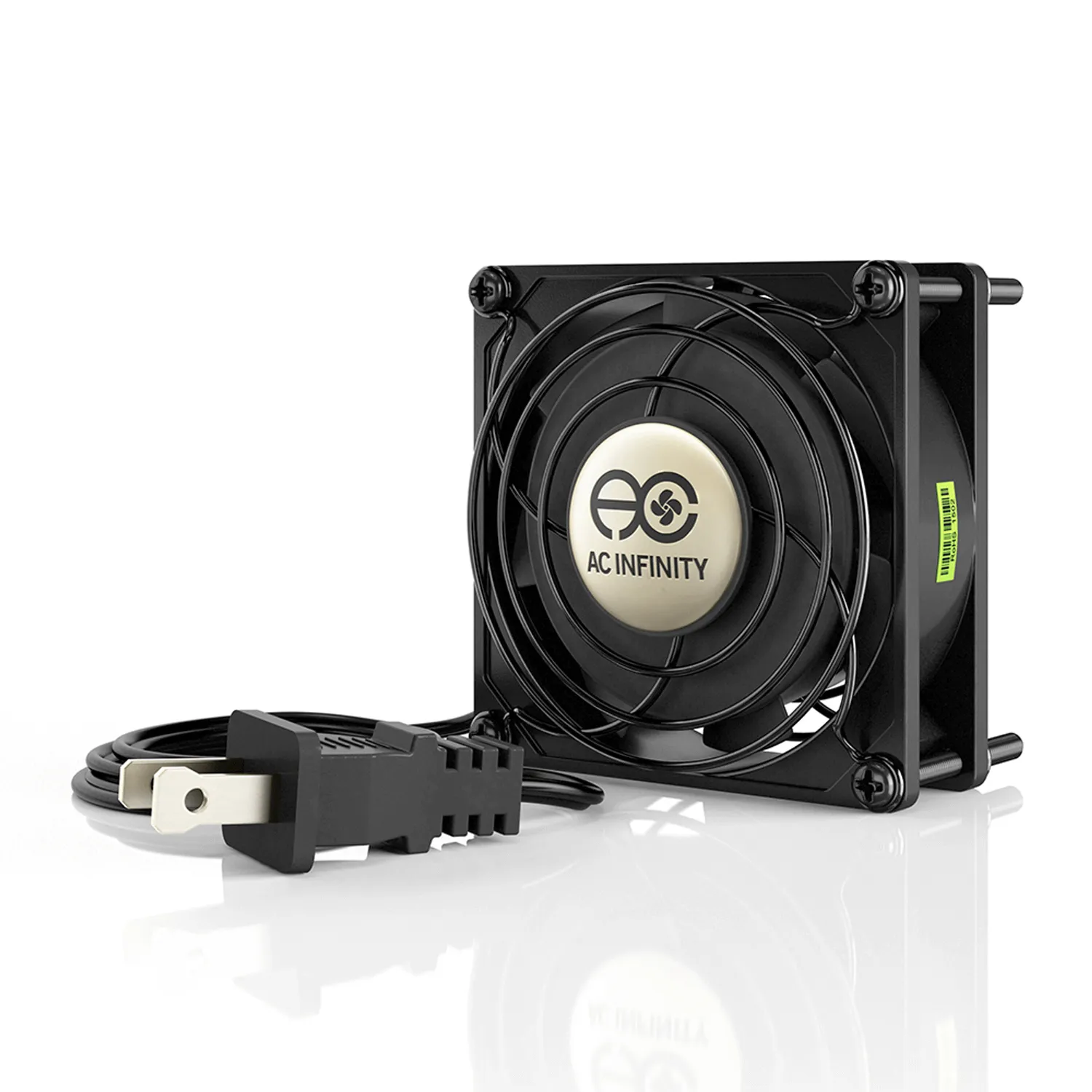

Included is a 4-foot power cord that can be attached to the fan's metal terminals or converted into lead wires for connection to a wired AC power source.

Also provided are two 80 millimeter metal fan guards and a mounting screw set.

The AC Infinity axial fan is UL recognized under certificate E503903, and also CE and RoHS certified.

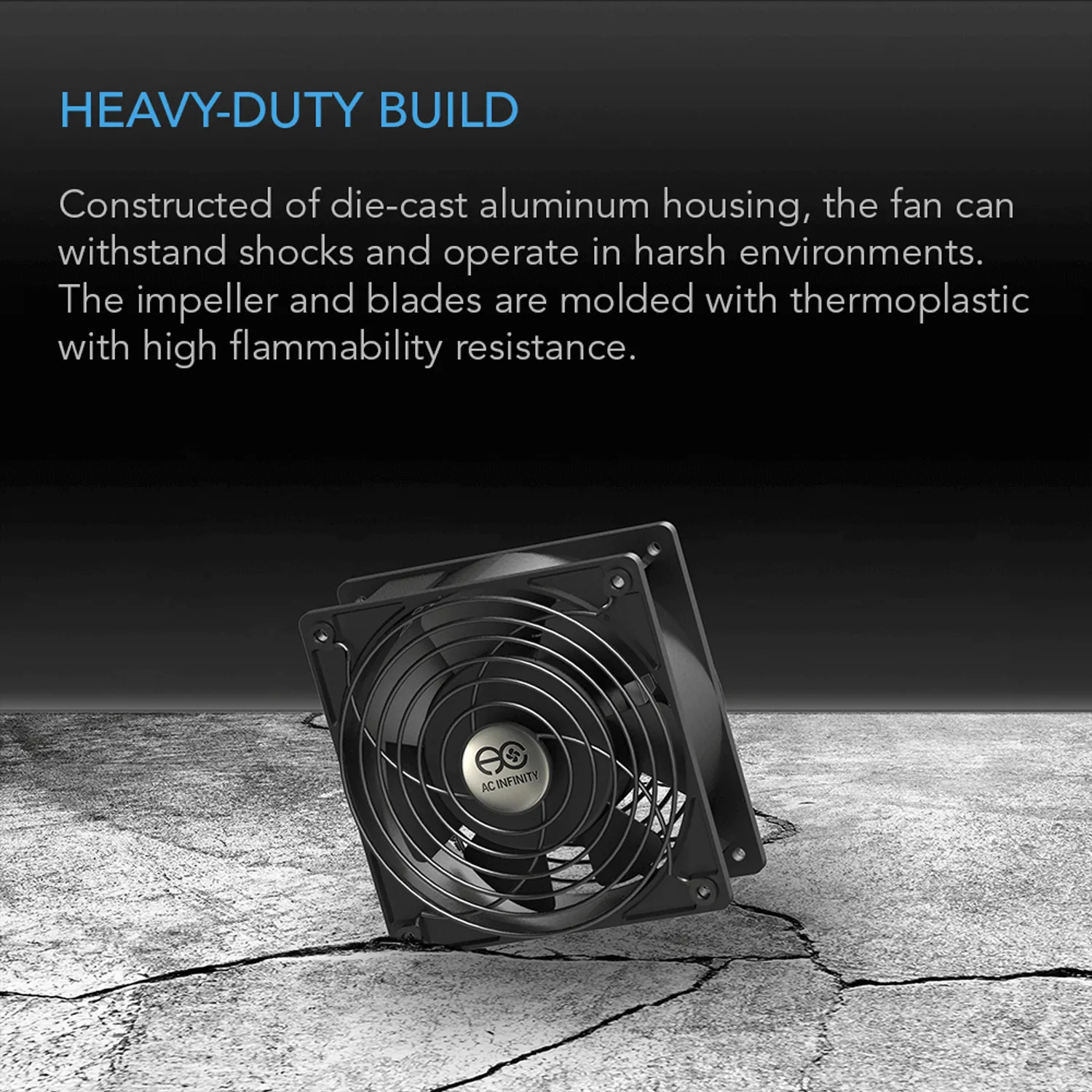

The fan's housing is constructed of die-cast aluminum painted black, enabling it to perform well in harsh environments and withstand shocks.

The impeller and blades are molded with thermoplastic, which have a high resistance to flammability.

The impedance-protected motor contains windings that have a higher resistance to heat during a rotor lock.

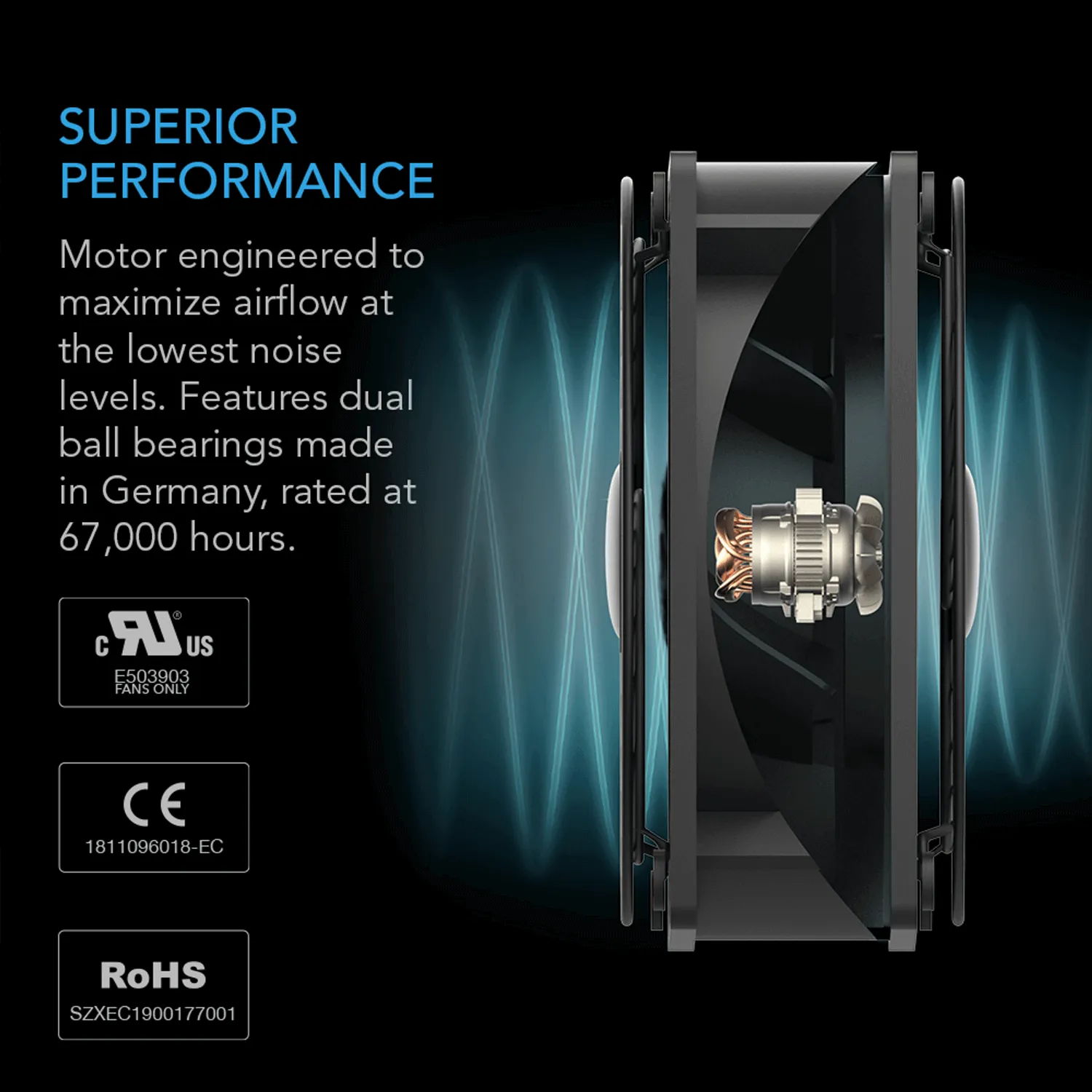

Containing long-life dual ball bearings, the fan can run continuously for 67,000 hours and can be mounted in any direction.

This high-speed fan is suitable for applications where maximizing airflow is the primary objective and a louder noise level is tolerable.

Popular uses include casino machines, chicken coops, industrial machinery, arcade systems, and more.

Because this is a standard industrial-size fan, it can be used to replace fans in various electronics and machinery.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: AXIAL 8025

Product Model: HS8025A-X

UPC Code: 854759004259

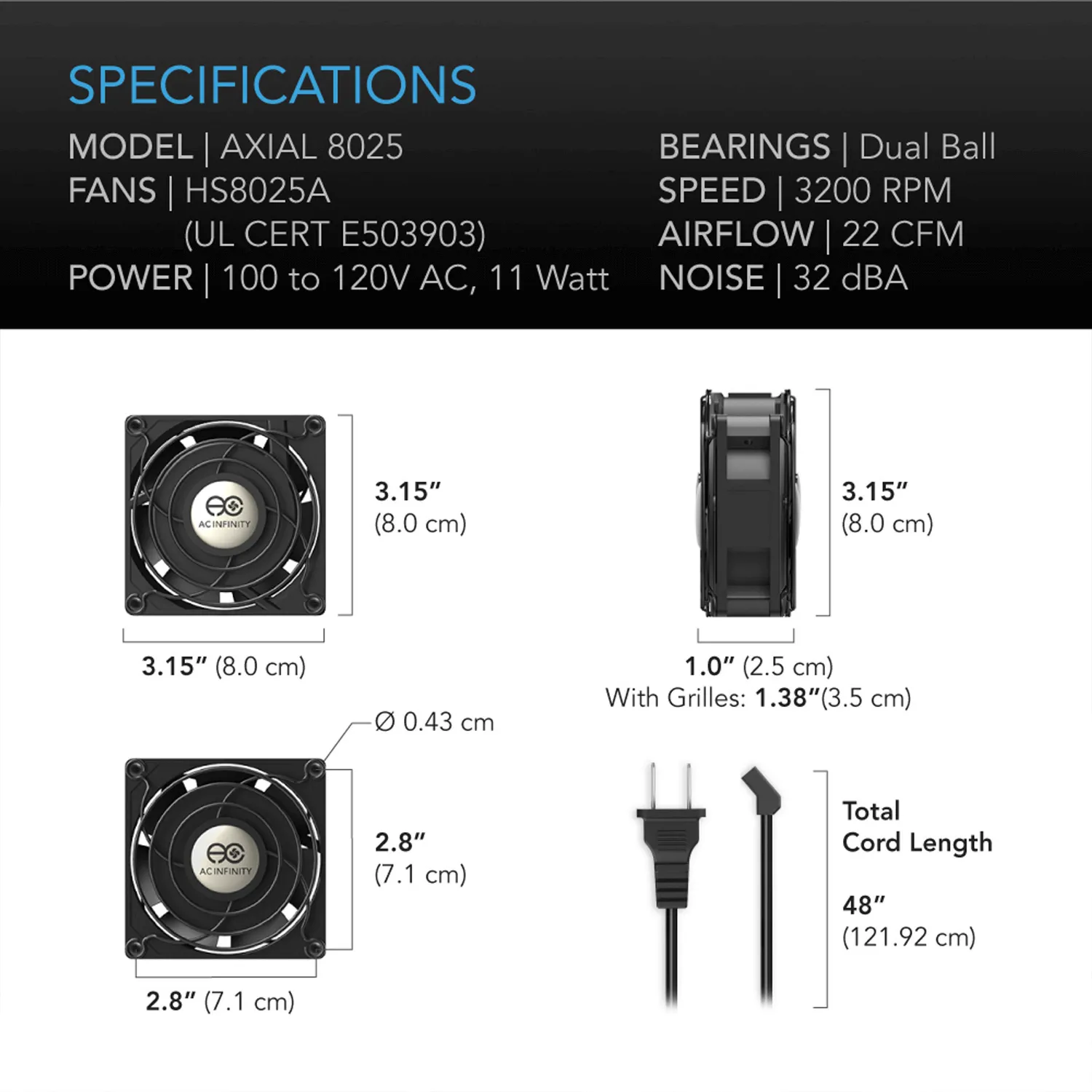

Product Dimensions

Total Dimensions: 3.15 x 3.15 x 1 in. (8.0 x 8.0 x 2.5 cm)

Hole to Hole Distance: 2.8 x 2.8 in. (7.1 x 7.1 cm)

Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)

Cord Length: 48 in. (4 feet)

Product Performance and Technical Specs

Fan Model: HS8025A

Total Airflow: 22 CFM

Total Noise: 32 dBA

Speed: 3200 RPM

Operating Voltage: 100 to 120V AC

Power: 11 W

Current: 0.1 A

Static Pressure: 6.4 mm-H2O

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours
