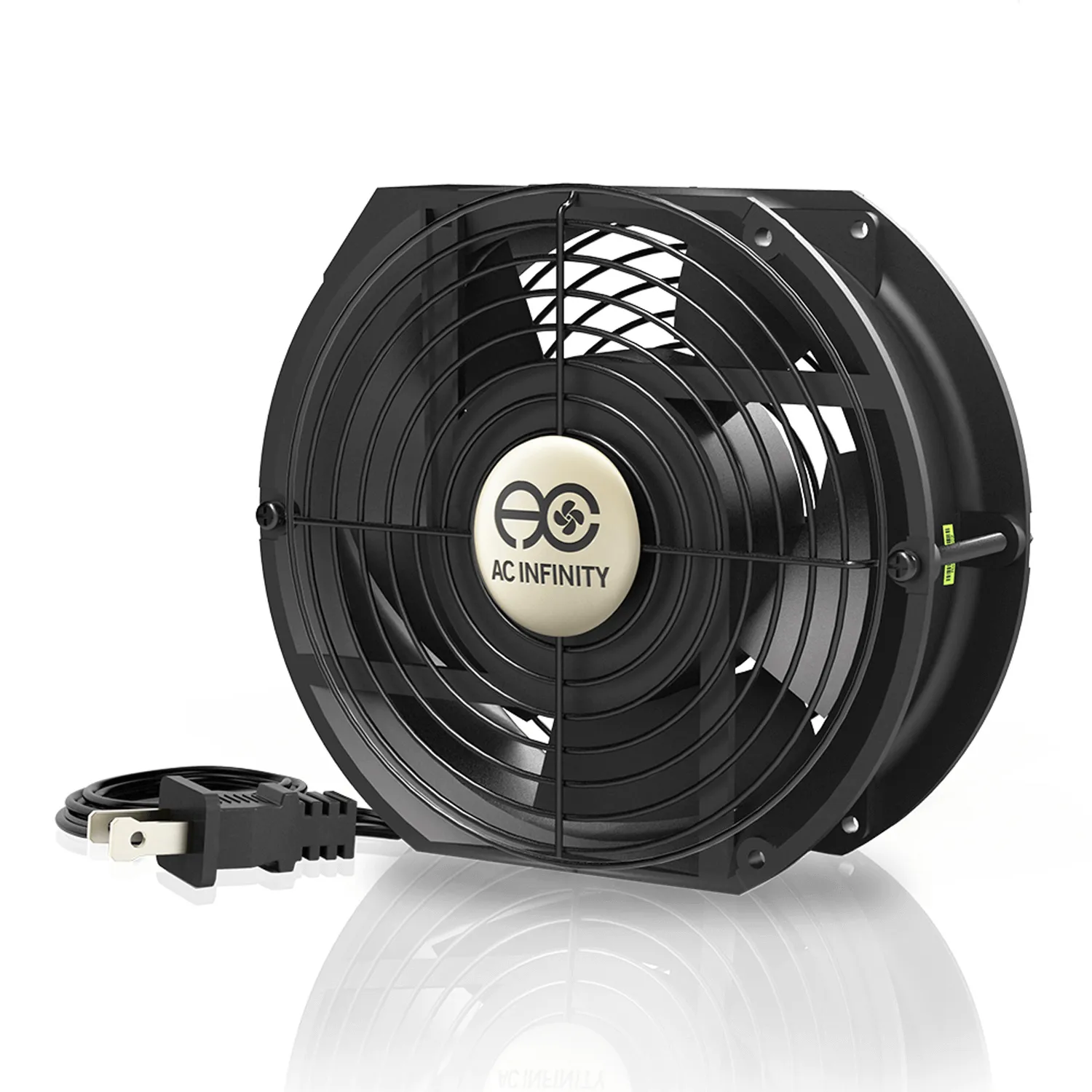

Name: AC Infinity AXIAL 1751, Muffin 120V AC Cooling Fan, 172mm x 150mm x 51mm
SKU: 493636

Description

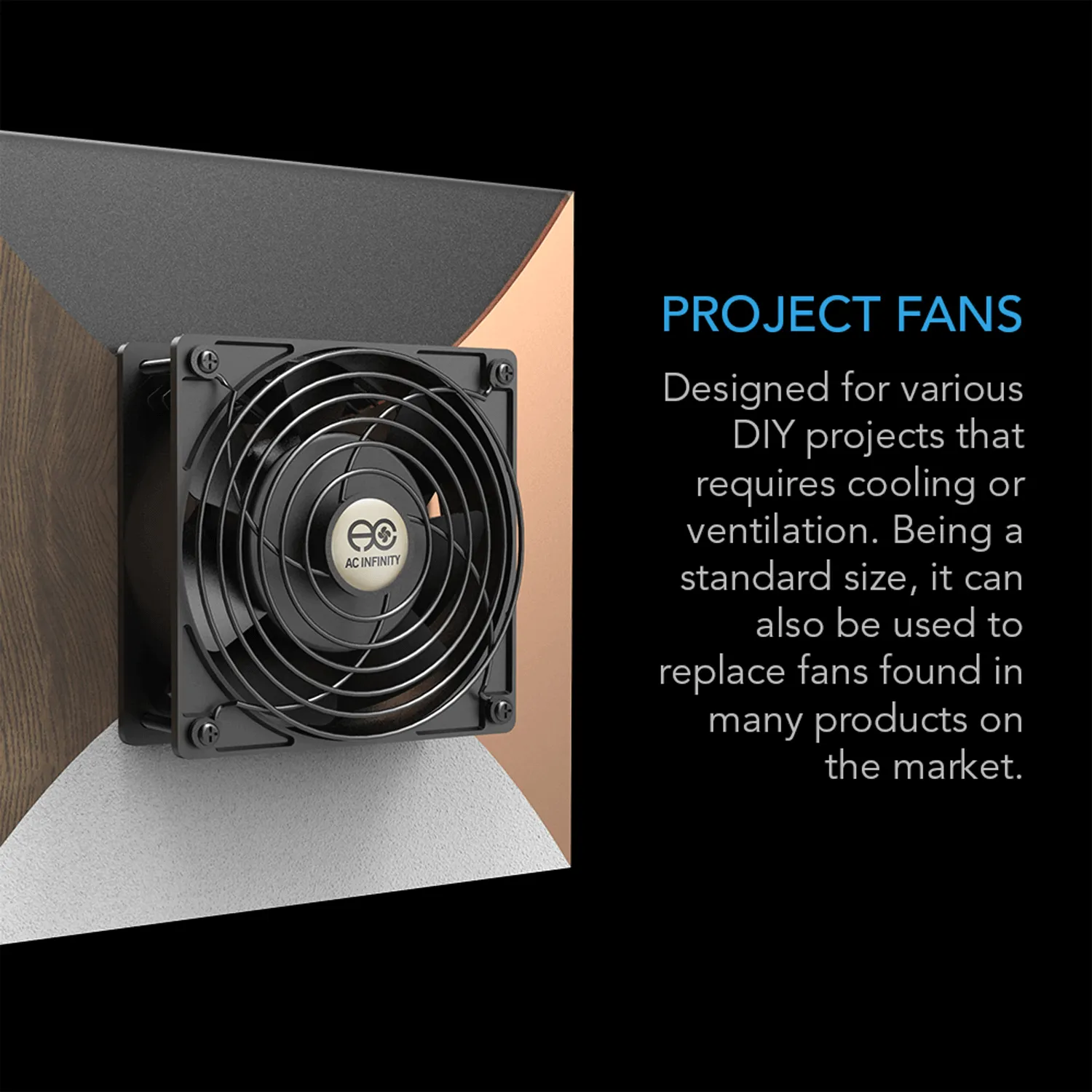

Designed for projects that require cooling or ventilation; or as a replacement fan for various products.

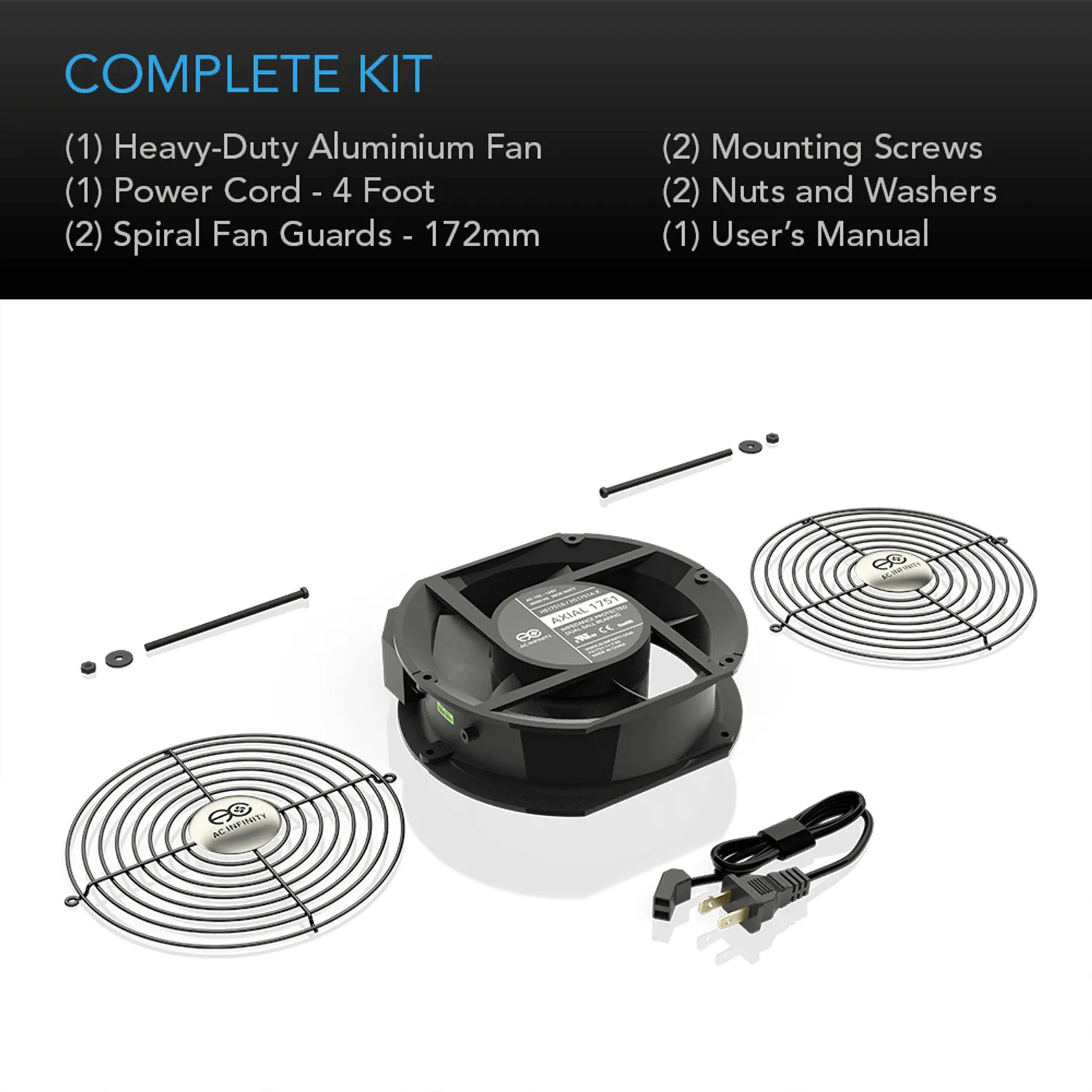

Includes a heavy-duty aluminum fan with power plug cord, two fan guards, and mounting screw set.

UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours and can be mounted in any direction.

High Speed: This model is designed to maximize airflow and may be too loud for some applications.

Dimensions: 172 x 150 x 51 mm (6.8 x 5.9 x 2 in.)

Power: 100 to 120V AC

Airflow: 211 CFM

Noise: 52 dBA

Speed: 2800 RPM

The heavy-duty axial fan kit is designed for custom projects and as a replacement fan. The fan runs on 100 to 120V AC and contains everything needed to easily mount the fan and power it through a wall outlet. It includes a 4-foot power cord that can be easily attached to the fan's metal terminals and allows it to be powered through a wall outlet. The plug cord can also be cut and converted into lead wires to be connected to a wired AC power source. The kit also includes two 172-millimeter metal fan guards and a mounting screw set. The AC Infinity axial fan is UL recognized under certificate E503903 and is also CE and RoHS certified.

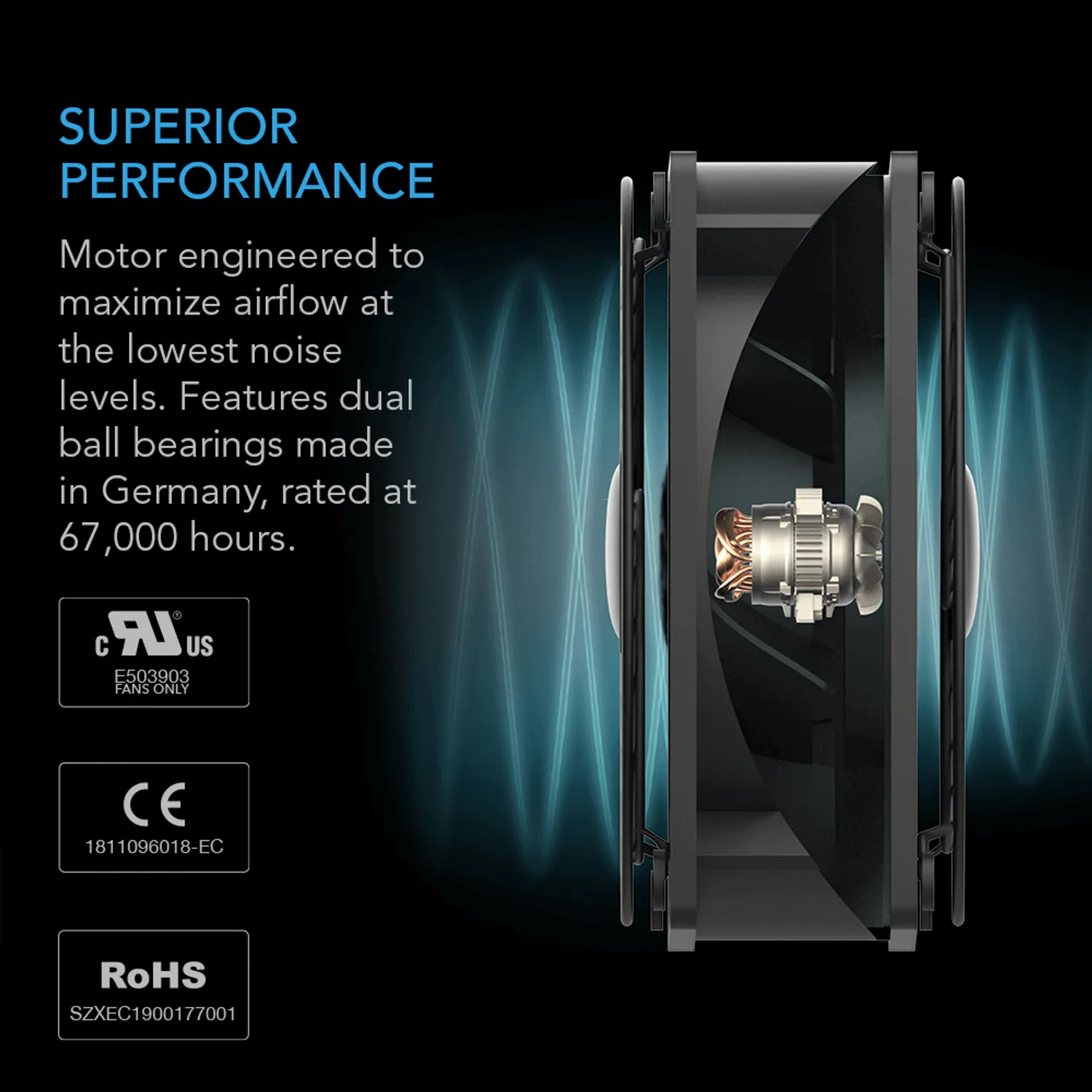

The fan's housing is constructed of die-cast aluminum painted black and is able to perform well in harsh environments and withstand shocks. Its impeller and blades are molded with thermoplastic, which has a high resistance to flammability. The impedance-protected motors contain windings that have a higher resistance to heat during a rotor lock. With long-life dual ball bearings, the fans can be run continuously for 67,000 hours and mounted in any direction.

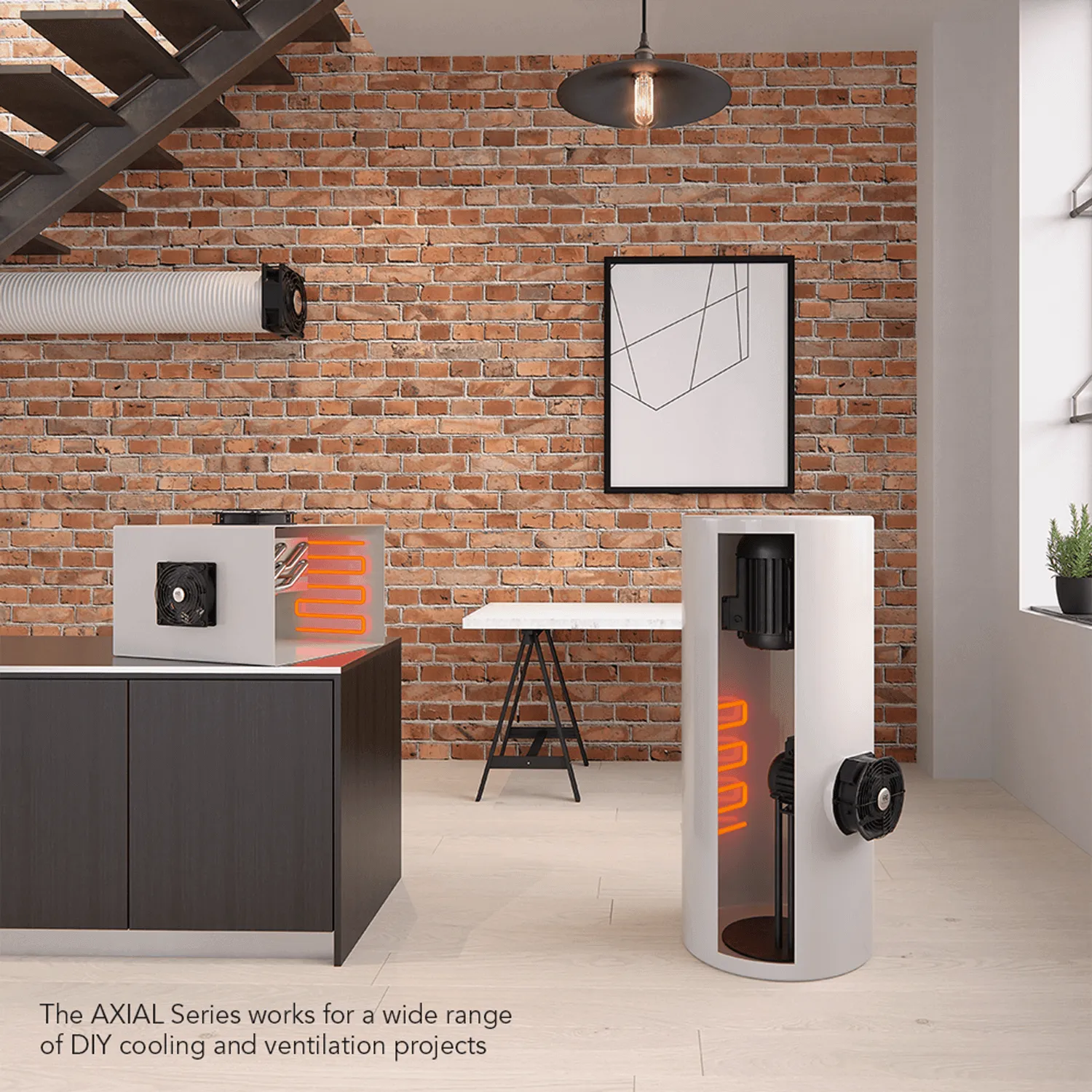

This high-speed fan is suitable for applications where maximizing airflow is the primary objective and a louder noise level is tolerable. Popular uses include tanning beds, LED signs, server racks, industrial machinery, arcade systems, and more. Because this is a standard industrial size fan, it can be used to replace fans found in various Samsung and Eaton servers and UPS systems.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: AXIAL 1751

Product Model: HS1751A-X

UPC Code: 854759004303

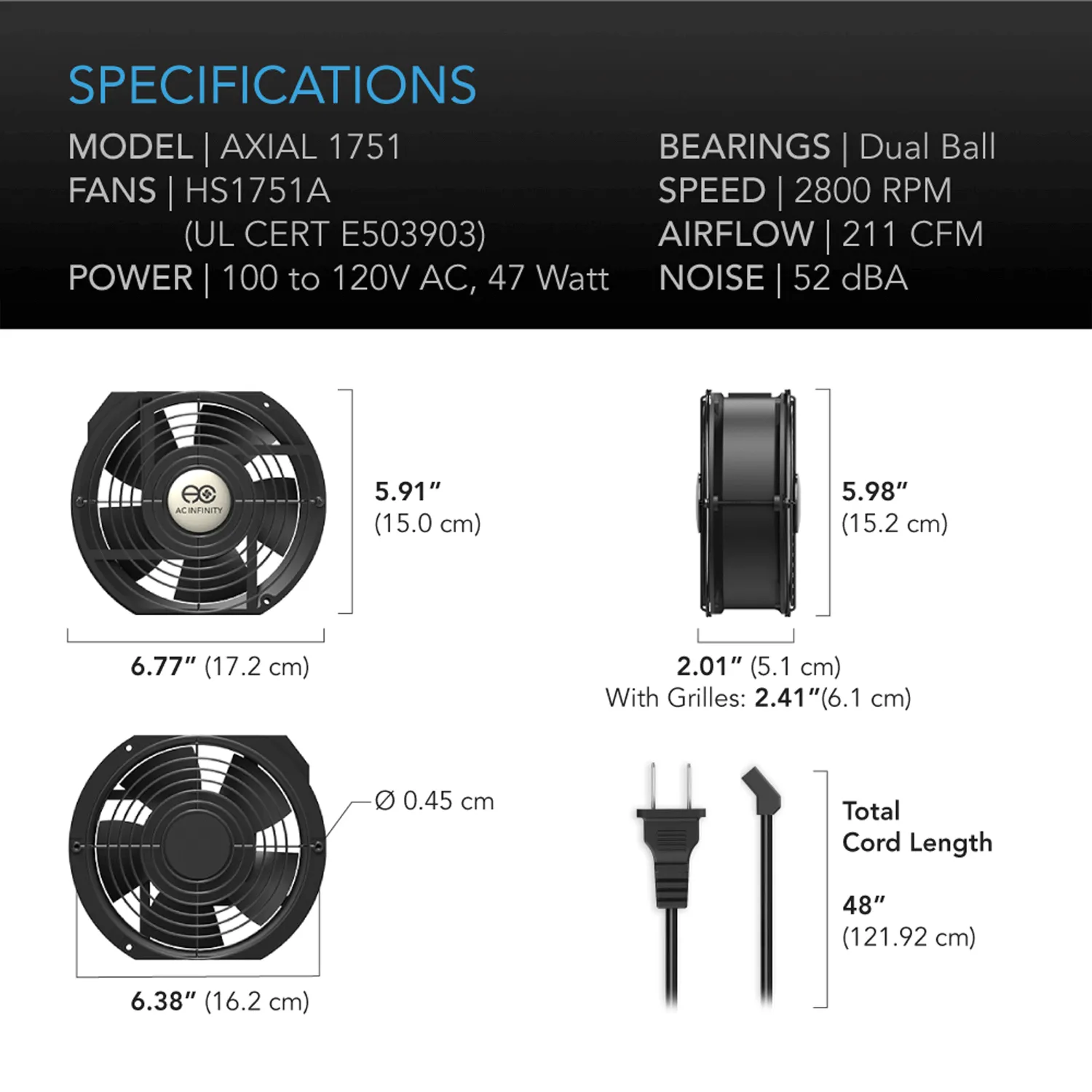

Product Dimensions

Total Dimensions: 6.8 x 5.9 x 2.0 in. (172 x 150 x 51 mm)

Hole to Hole Distance: 6.38 in. (16.2 cm)

Screw Hole Size: Ø 0.17 in. (Ø 0.4 cm)

Cord Length: 48 in. (4 feet)

Product Performance and Technical Specs

Fan Model: HS1751A

Total Airflow: 211 CFM

Total Noise: 52 dBA

Speed: 2800 RPM

Operating Voltage: 100 to 120V AC

Power: 47 W

Current: 0.4 A

Static Pressure: 13.7 mm-H2O

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

Download the Product Manual:
